Keis Heated Insole 12V

Keis Heated Insole 12V

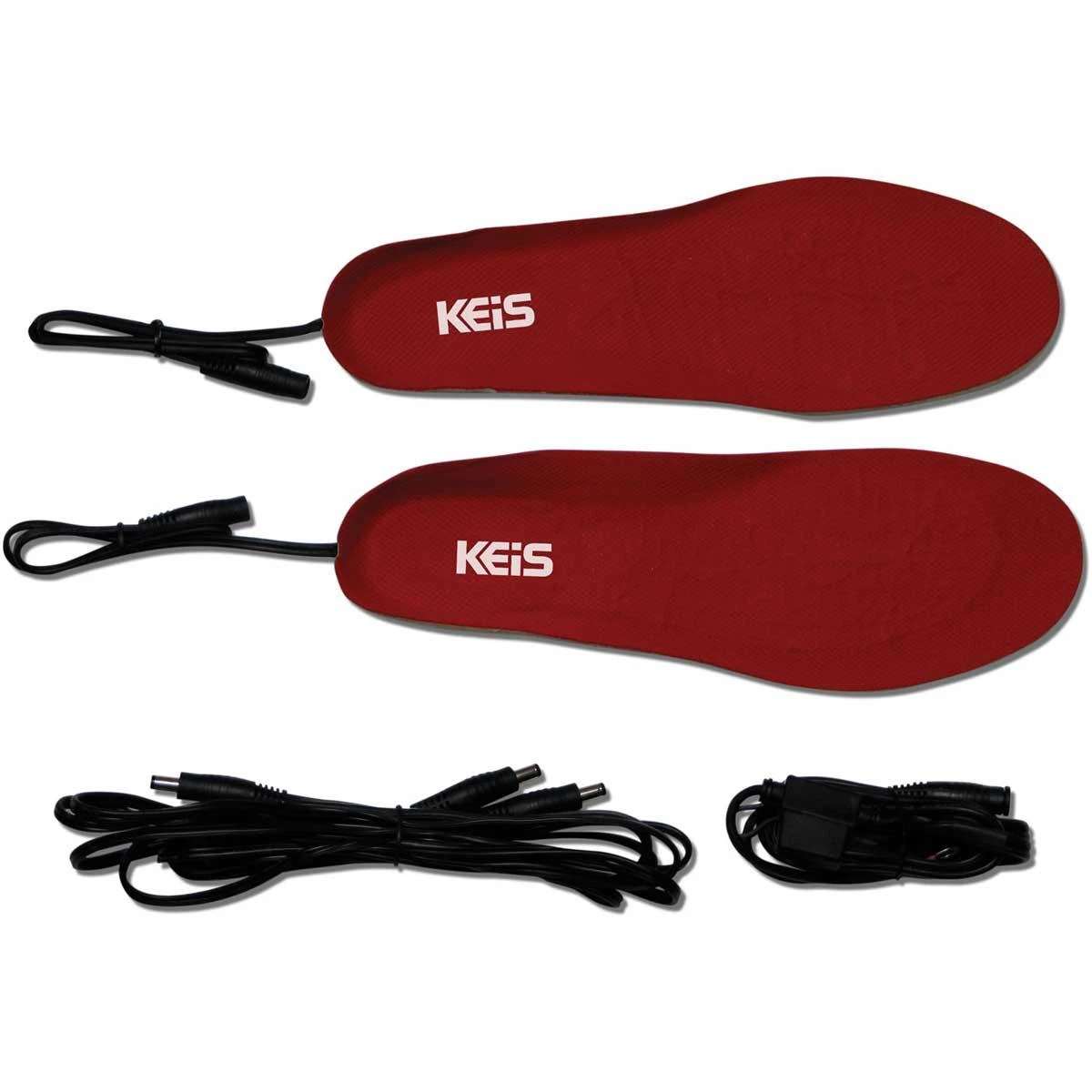

They come complete with everything you need to connect directly to a 12v vehicle supply or from a Keis power pack. INSTALLING THE KEIS INSOLES INTO YOUR FOOTWEAR IMPORTANT NOTE: Read these instructions carefully BEFORE cutting your Insoles! Cut ONLY along the lines printed on the Insole according to your foot size. If in doubt cut to a size larger and progressively trim for the best fit. TAKE CARE not to cut inside the marked area. Damage to the element cannot be repaired!

Size Guide:
S = UK4-5 / EU37-38
M = UK6-7 / EU39-41
L = UK8-9 / EU42-43
XL = UK10+ / EU44+

Keis Heated Insole 12V Manufacturer Spec

SAFETY & ENVIRONMENT FIRST
Do not dispose of electrical equipment with standard domestic waste.
Contact your local authority for information specific to your area.
WARNING
This electrically heated garment must be used strictly in accordance with the manufacturer’s instructions. Failure to observe this notice may lead to increased risk of burns & fire resulting in injury or death.
Switch the garment off immediately & check the affected skin at any sign of irritation or sensation of excessive heat.
Never leave the garment unattended when switched on.
This product is unsuitable for young children
Do not use this product if you suffer from: heightened or impaired temperature sensitivity; an inability to sense temperature extremes; circulatory problems resulting from diabetes or other medical conditions
When operating with batteries use only the appropriate Keis Battery Pack & Charger
When operating using a vehicle battery ONLY use this product with 12V systems
Ensure replacement fuses are rated at 5A ONLY
Do not modify or disassemble any part of the system in any way
Do not use if the product is visibly damaged
TECHNICAL DATA
Voltage: 12V Only. Typical Power: 8W each/16W per pair
PREPARING A VEHICLE TO POWER YOUR KEIS HEATED INSOLES
If powering your Keis Heated Insoles from a vehicle battery attach the Fused Connection
Lead directly to the battery or other live 12V source taking into account any safety notices
issued by the vehicle manufacturer & observing the polarity Red +ve & Black -ve
Position the power socket so it is in a convenient position to power your garment & secure if necessary using cable ties or tape ensuring that it cannot interfere with the normal operation of the vehicle
PREPARING THE KEIS HEATED INSOLES SUPPLY LOOM
Thread the Insole Supply Loom through your over trousers with one plug positioned at the end of each leg & one protruding from the waist on the side from which the power will be provided. Note: The shorter of the two leads on the Insole Supply Loom should be positioned on the side from which you will connect the power! If you use the insoles on a regular basis consider using thread to tack the Insole Supply Loom into the lining of the trousers
POWERING YOUR KEIS HEATED INSOLES FROM A VEHICLE POWER SOURCE
Your Keis Heated Insoles can be powered directly from the Fused Connection Lead as installed above or the optional Cigarette Lighter/Accessory Plug (Pt. No. W54-BSB12) To operate simply connect & disconnect the jacket to & from the power source as required
For more control we recommend the use of the On/Off Switch Pt. No. W54-SWITCH or Heat Controller
POWERING YOUR KEIS HEATED INSOLES FROM A KEIS POWER PACK
Your Keis Heated Insoles can also be operated on portable battery packs with an integral heat controller. Visit www.keisapparel.co.uk.
POWERING YOUR KEIS HEATED INSOLES FROM OTHER KEIS HEATED GARMENTS
Some models of Keis Heated Garments have dedicated power supply sockets for accessories such as Heated Soles which means they can share a single power source!
